Intravenous Regional Anesthesia: A New Look at an Old Technique
More than a century has passed since Dr August Bier first described vein anesthesia as a rapid-onset anesthetic technique for extremity surgery. The process required exsanguination of the extremity, application of a tourniquet, vascular cutdown for access, and administration of local anesthetic. The technique was considered cumbersome, and with the introduction of brachial plexus blockade, it was largely forgotten. However, in 1963, C. Holmes published a case series in Lancet using diluted lidocaine for intravenous anesthesia, thus reviving interest in the anesthetic technique.
“Intravenous regional anesthesia is one of the oldest anesthetic techniques still in use today. More than 100 years of experience attest to its safety and utility in a wide variety of procedures.”

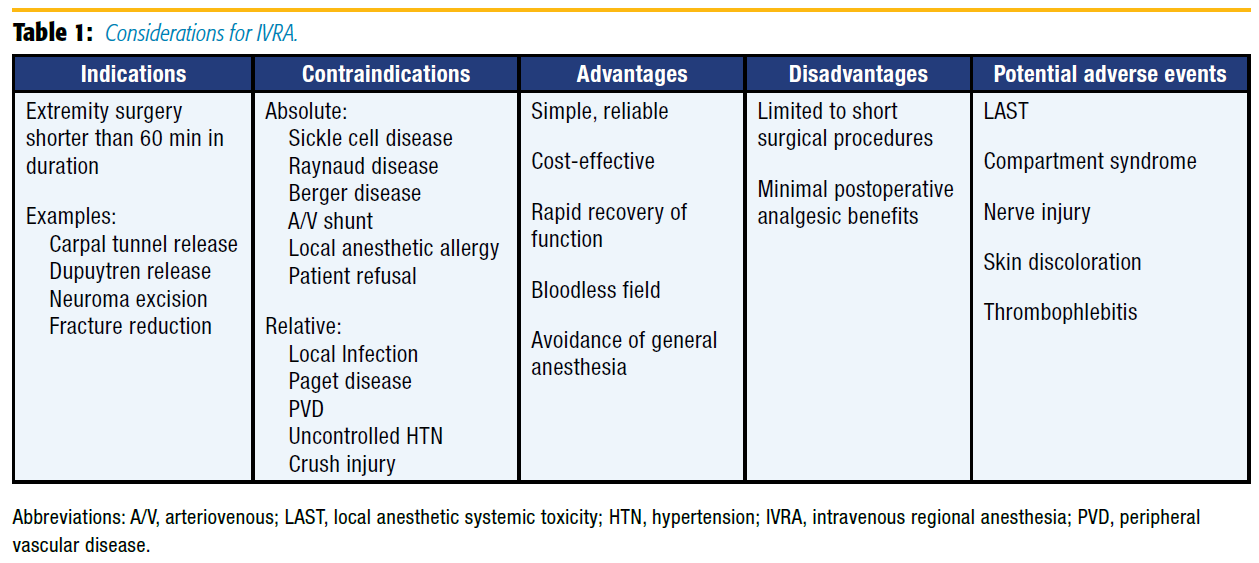

Today, the technique is commonly referred to as a Bier block or intravenous regional anesthesia (IVRA). It has been refined over the years and remains a core skill for anesthesiologists worldwide. Although IVRA has been used for lower-extremity surgery, it is most commonly performed on upper extremities for planned surgical procedures 60 minutes or shorter in duration. Indications, contraindications, advantages, and disadvantages as well as potential adverse outcomes must be considered when selecting IVRA as an anesthetic plan (see Table 1).
IVRA is a simple, effective anesthetic technique with a reported success rate of 96–100%. Preparation for the block should ensure standard American Society of Anesthesiologists monitors application, adequate nil per os status, and immediate access to resuscitation equipment, including lipid emulsion. The technique requires reliable intravenous access in the operative extremity near the surgical site. Following Esmarch bandage exsanguination, the tourniquet is inflated. Tourniquet use has several accepted approaches, including single or double tourniquet and proximal (upper arm) or distal (forearm) tourniquet. Recently, use of a forearm tourniquet has increased because of diminished tourniquet pain and potentially improved safety with the use of decreased local anesthetic volumes.[3–5]
Although optimal inflation pressure has not been determined, the tourniquet is typically inflated to 100 mm Hg over systolic blood pressure or to a minimum of 250 mm Hg.[6-7] After the bandage is removed, local anesthetic is injected into the cannulated vein distal to the tourniquet. Dilute lidocaine (0.5%) is the most commonly used local anesthetic, and the total dose should not exceed 3 mg/kg. Following injection, the intravenous catheter is removed, pressure is held on the site, and within 5–10 minutes, reliable surgical anesthesia is achieved with adequate muscle relaxation. Once the surgical procedure is complete, the tourniquet is deflated. Following 25–30 minutes of tourniquet time, most of the lidocaine is bound to local tissue, and the risk of local anesthetic systemic toxicity (LAST) should be significantly diminished. However, a recent retrospective cohort study saw no increase in major complications for tourniquet times less than 20 minutes.
Multiple mechanisms are responsible for surgical anesthesia during IVRA. Local anesthetic is carried through the veins to the intraneural capillary plexus, where it reaches the terminal nerve endings and secondarily diffuses out of the vascular space to affect local nerves. In addition, tourniquet inflation leads to ischemia as well as nerve compression; however, this is often delayed and not the primary mechanism for anesthesia.
IVRA is safe but not entirely without the risk of complications. Bupivacaine was once used for IVRA in an attempt to improve postoperative analgesia. Its use was abandoned after reports of LAST upon tourniquet release; this was especially true in cases of premature release of the tourniquet. LAST during IVRA may still occur despite the use of less cardiotoxic lidocaine, with seizures reported at doses as low as 1.4 mg/kg and cardiac arrest with doses as low as 2.5 mg/kg. Importantly, seizures have been reported after tourniquet deflation, despite tourniquet times up to 60 minutes, and may also occur up to 10 minutes after the tourniquet is completely deflated. This indicates the need for continued vigilance during tourniquet deflation and during transport from the operating room, as this may fall within the window of time that seizures may occur.
The most common local anesthetics for IVRA are lidocaine (United States) and prilocaine (Europe). Given that ropivacaine is less cardiotoxic than bupivacaine, several studies have investigated the use of ropivacaine for IVRA. Ropivacaine use results in similar onset times and tourniquet tolerance as with lidocaine but increased time to recovery of sensory and motor function and improved postoperative analgesia. Cardiotoxicity is still possible with ropivacaine, and its widespread use for IVRA is limited by this potential. However, a recent review of studies evaluating ropivacaine IVRA described tinnitus and dizziness as reported complications but no cases of cardiotoxicity.
Complications unrelated to local anesthetic administration may also occur. The most serious of these is compartment syndrome, either as a result of the tourniquet itself (unrelated to the use of local anesthetics) or the inadvertent use of hypertonic saline as the diluent for the local anesthetic. Nerve injury may occur and is associated with longer tourniquet times, higher tourniquet inflation pressures, and younger patient age. Petechiae or other skin discoloration and hypertension with tourniquet inflation have been reported. Thrombophlebitis has been reported with chloroprocaine and lidocaine and is more common with preservative-containing local anesthetic solutions.

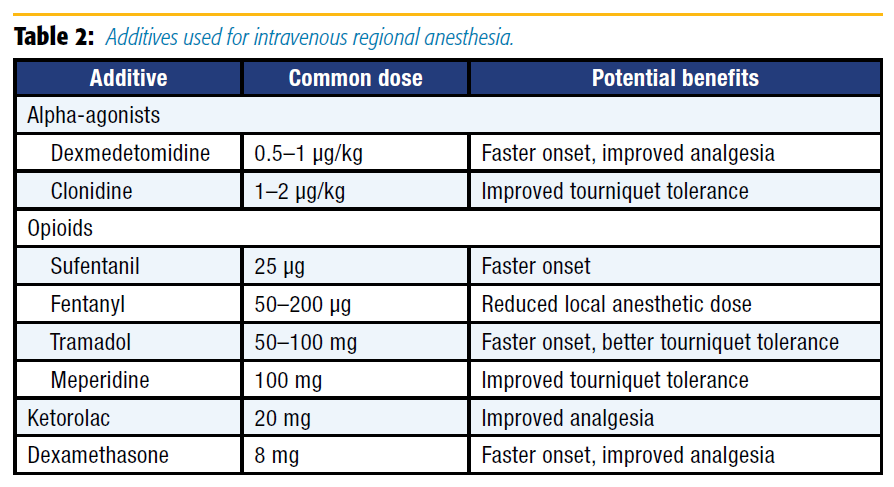

The primary disadvantage of IVRA compared with nerve or plexus blocks is the provision of limited postoperative pain relief. As the procedure is now more than 100 years old, many modifications to the original Bier block, particularly additives, have been evaluated (see Table 2).
The study of additives in IVRA is difficult in that systemic absorption of the additive must always occur after tourniquet deflation; hence, careful protocol design must attempt to exclude the systemic effect of the medication and isolate its block-related effect. Additives may improve the block's quality, onset time, duration, or performance (ie, motor block). Opioids added to IVRA may improve tourniquet pain and onset time modestly; these benefits are generally not outweighed by the significant occurrence of nausea, vomiting, and sedation at tourniquet deflation. Recent interest in the use of tramadol and sufentanil as adjuncts in IVRA is inspired by the local anesthetic-like properties of both drugs; indeed, both agents seem to shorten the onset of sensory block. However, neither appears to confer significant postoperative analgesic benefits. The addition of nondepolarizing muscle relaxants may improve motor block and in combination with fentanyl may result in acceptable blockade at a reduced dose of local anesthetic. This benefit, however, is offset by the potential for increased sensory block onset time. Furthermore, the theoretical analgesic benefit of muscle relaxants added to IVRA solutions (through reduction in muscle spasm) has not been convincingly shown.
The use of nonsteroidal anti-inflammatory drugs (NSAIDs) as adjuncts for IVRA has been widely studied. A review by Choyce and Peng in 2002 summarized the state of the literature at that time, with ketorolac shown to reduce postoperative pain after IVRA.13 However, the subsequent retraction of several articles published regarding NSAIDs and acute pain have clouded the picture.14 Recent studies have indirectly addressed that question by investigating the use of additional adjuvants. Two of those studies have associated ketorolac with postoperative pain and analgesic requirements when added to the IVRA solution compared with lidocaine alone but did not include a systemic administration control group.[15-16]
Clonidine and dexmedetomidine have also been added to IVRA solutions with mixed results. Clonidine may increase tourniquet tolerance time and modestly reduce postoperative pain scores, but sedation and hypotension after tourniquet release are significant adverse effects. Dexmedetomidine is more selective for alpha-2 receptors than clonidine, which accounts for its preferential sedative over hemodynamic effects. At doses of 0.5–1 μg/kg added to lidocaine, dexmedetomidine improves postoperative analgesia and may shorten sensory block onset time.[17-18] Importantly, hemodynamic changes (bradycardia, hypotension) may still occur with dexmedetomidine but seem less severe than with clonidine. A wide variety of other additives have been studied to improve IVRA, although most studies are small and often limited by the lack of a systemic control group. Dexamethasone in a dose of 8 mg added to plain lidocaine 3 mg/kg shortens block onset and improves postoperative analgesia in some small studies, and this effect may be magnified by the addition of other additives such as ketorolac. The addition of ketamine to the block solution improves postoperative and intraoperative analgesic requirements; however, this effect seems to be no different than with systemic administration. The addition of potassium confers no advantages, and changing the temperature of the injectate does not affect the quality of the block, although warmer solutions are less painful on injection.
Intravenous regional anesthesia is one of the oldest anesthetic techniques still in use today. More than 100 years of experience attest to its safety and utility in a wide variety of procedures. Recent investigations have sought to improve the technique via lower doses of local anesthetic with more distal tourniquets, the use of longer-acting local anesthetics (ropivacaine), and the addition of other medications (eg, dexmedetomidine) to the block solution. As always, vigilance, careful patient selection, consideration of comorbidities, and case-by-case individual assessment by a skilled anesthesiologist are necessary to ensure optimal outcomes.
- Holmes C. Intravenous regional analgesia: a useful method of producing analgesia of the limbs. Lancet 1963;1:245–247.
- Brill S, Middleton W, Brill G, Fisher A. Bier's block: 100 years old and still going strong! Acta Anaesthesiol Scand 2004;48(1):117–122.
- Arslanian B, Mehrzad R, Kramer T, Kim DC. Forearm Bier block: a new regional anesthetic technique for upper extremity surgery. Ann Plast Surg 2014;73(2):156–157.
- Chiao FB, Chen J, Lesser JB, et al. Single-cuff forearm tourniquet in intravenous regional anaesthesia results in less pain and fewer sedation requirements than upper arm tourniquet. Br J Anaesth 2013;111(2):271–275.
- Perlas A, Peng PW, Plaza MB, et al. Forearm rescue cuff improves tourniquet tolerance during intravenous regional anesthesia. Reg Anesth Pain Med 2003;28(2):98–102.
- Wilson JK, Lyon GD. Bier block tourniquet pressure. Anes Analg 1989;68(6):823– 824.
- Kumar K, Railton C, Tawfic Q. Tourniquet application during anesthesia: what we need to know? J Anaesthesiol Clin Pharmacol 2016;32(4):424.
- Gurich RW Jr, Langan JW, Teasdall RJ, et al. Tourniquet deflation prior to 20 minutes in upper extremity intravenous regional anesthesia [published online January 4, 2017]. Hand. doi:10.1177/1558944716686214
- Rosenberg PH. Intravenous regional anesthesia: nerve block by multiple mechanisms. Reg Anesth Pain Med 1993;18(1):1–5.
- Heath ML. Deaths after intravenous regional anaesthesia. BMJ 1982;(285)6346:13–14.
- Guay J. Adverse events associated with intravenous regional anesthesia (Bier block): a systematic review of complications. J Clin Anesth 2009;21(8):585–594.
- Flamer D, Peng PWH. Intravenous regional anesthesia: a review of common local anesthetic options and the use of opioids and muscle relaxants as adjuncts. Local Reg Anesth 2011;4(1):57–76.
- Choyce A, Peng P. A systematic review of adjuncts for intravenous regional anesthesia for surgical procedures. Can J Anes 2002;49(1):32–45.
- Shafer SL. Notice of retraction. Anes Analg 2009;108(4):1350.
- Ko MJ, Lee JH, Cheong SH, et al. Comparison of the effects of acetaminophen to ketorolac when added to lidocaine for intravenous regional anesthesia. Korean J Anesthesiol 2010;58(4):357–361.
- Akram M, Farooqi FM, Irshad M, et al. Role of addition of dexamethasone and ketorolac to lignocaine intravenous regional anesthesia (Bier's block) to improve tourniquet tolerance and post-operative analgesia in hand and forearm surgery. J Pak Med Assoc 2015;65(11 suppl 3):S128–S131.
- Ramadhyani U, Park JL, Carollo DS, et al. Dexmedetomidine: clinical application as an adjunct for intravenous regional anesthesia. Anesthesiol Clin 2010;28(4):709–722.
- Sardesai SP, Patil KN, Sarkar A. Comparison of clonidine and dexmedetomidine as adjuncts to intravenous regional anaesthesia. Indian J Anaesth 2015;59(11): 733–738.
- Hassani E, Mahoori A, Aghdashi MM, Pirnejad H. Evaluating the quality of intravenous regional anesthesia following adding dexamethasone to lidocaine. Saudi J Anaesth 2015;9(4):418–421.
- Abdel-Ghaffar HS, Kalefa MA., Imbaby AS. Efficacy of ketamine as an adjunct to lidocaine in intravenous regional anesthesia. Reg Anesth Pain Med 2014;39(5):418–422.
- Viscomi CM, Friend A, Parker C, Murphy T, Yarnell M. Ketamine as an adjuvant in lidocaine intravenous regional anesthesia. Reg Anesth Pain Med 2009;34(2):130–133.
- McKeown DW, Scott DB. Influence of the addition of potassium to 0.5% prilocaine solution during I.V. regional anaesthesia. Br J Anaesth 1984;56(10):1167–1170.
- Paul DL, Logan MR, Wildsmith JA. The effects of injected solution temperature on intravenous regional anaesthesia. Anaesthesia 1988;43(5):362–364.
